Tutorial: Display Lithology Logs in 3D

Estimated time: 8 minutes.

In this lesson, you will get a quick view of all of the lithology data as entered for the project's boreholes. You will look at how the data is entered, and you will generate a 3D diagram representing the borehole lithology logs.

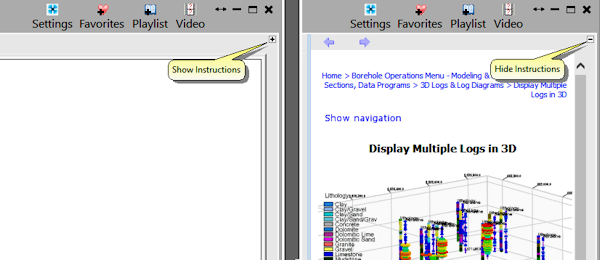

  1. Be sure the Samples folder is still the current project folder (see Open a Project for information).
  2. In the borehole file listing along the left side of the Borehole Manager, click on the borehole named DH-01 to make it active.

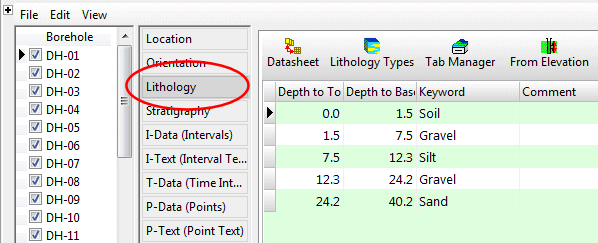

  3. Click on the Lithology tab to view the lithologic data for this hole.

    Note how the lithologic intervals are defined with a top and base depth, and a lithology "keyword". RockWorks lets you enter your rock/soil types using regular words like "silt" or "sand" or "interbedded sandstone and siltstone." In order to know what "interbedded sandstone and siltstone" is, the program relies on a reference library called a Lithology Types Table. This is created by the user. A Lithology Types Table is created for each project that has lithology information. We’ll look at this in a minute.

  4. Click on another borehole name in the list to the left, and you’ll see the information listed in its Lithology table.

    Note also how the rock types can repeat – sand, clay, gravel, clay, sand - within a single borehole. Rock types that don’t show organized layering need to be entered into RockWorks as lithology. ("Stratigraphy" by contrast assumes defined layers that are consistent in order between holes and don’t repeat within a borehole. See the lessons on Stratigraphy diagrams for more information.)

  5. Look at the project's Lithology Types Table:

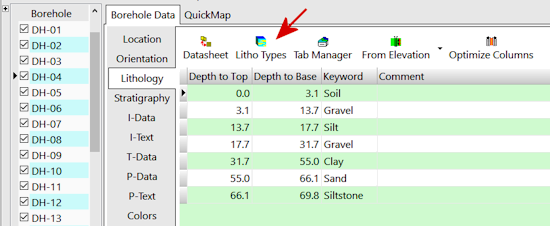

    1. Click on the Litho Types button that sits above the lithology data listings.

      Note that you can also access the Lithology Types table using the Project Manager tab, in the Project Tables | Types Tables grouping:

      The program will display this project's lithology material types.

      A quick summary:

      • G-Value: Lists the numeric value to be assigned to each rock type. As RockWorks creates a solid model of the rock types, the nodes will be assigned these numeric values rather than the words "clay" or "gravel". In the final model, then, all Sand zones will be coded with a "5.0", Silts with a "4.0", Clays with a "3.0", and so on. We'll review this in a later lesson when you create a model of the lithology across the study area.
      • Keyword: The rock types in this project.
      • Pattern: The specific pattern in specific colors for the rock type for logs and cross sections.
      • Fill Percent: Defines how much of the available space the pattern block should occupy in strip logs (less than 100% can show erosion, weathering).
      • Density: The rock density - used only for computing mass.
      • Show in Legend: Used to specify whether the material is to be included in the diagram legends. Un-checking an item doesn't remove it from the table itself, just from any subsequent legends that are created.
      • To add a row to the listing, just click in the lowest existing row and press the down-arrow key on your keyboard.
      • To delete a row from the listing, click in the row and type Ctrl+Del.

      You can click on G-Value column heading to sort on those numbers, or the Keyword column heading to sort on the names.

    2. Click on the OK button to close the Lithology Types Table.
  6. Let’s create the 3D log diagram. Locate the Striplogs menu in the upper menu ribbon, in the Borehole Operations grouping. Select the 3D Striplogs option.

    This window has several sections:

  7. Click back onto the Main Options tab to establish the general diagram settings along the left.
  8. Click on the 3D Log Design tab at the top of the window.

  9. Choose the items you want to see in the logs by inserting a check-mark in the following items in the left pane of the window:
  10. Click the Continue button at the bottom of the window to proceed.

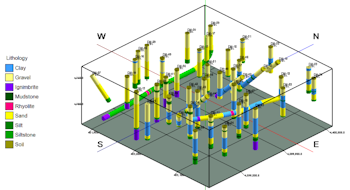

    The program will create a strip log for each borehole, including well name and lithology column, and these logs will be displayed in a new RockPlot3D display tab.

    ! Each time you click the Continue button, a new 3D display will be regenerated.

    This is an interactive 3D viewing program – let’s take just a moment to look around.

    The image is displayed in the pane to the right, and the image components as well as the standard reference items are listed in the data pane to the left of the image. (You can swap the position of the image and data panes using the << or >> buttons above the linked file list.)

  11. Adjust the reference display first:

  12. Adjust the vertical exaggeration: Click on the View Dimensions button at the top of the window. In the Vertical Exaggeration prompt toward the bottom of the window, type in 2.0. Click the Apply button to apply this change. You may need to move the Options window out of the way to see the logs in the background. Close the Options window by clicking the Close button.
  13. Rotate the image: The default viewing operation is rotate (see the button depressed in the toolbar ). Left-click and hold anywhere in the log display and slowly drag to the left or right, up or down and see how the display rotates. Release the mouse button when you are done. Rotate the image again if you wish. Note that the log depth labels always face you even after rotating!
  14. To restore the view to a fixed viewpoint, choose one from the View | Above, View | Below, or View | Compass Points options. (This can be helpful if you get your image turned upside-down.)

    Tip: If you customize the display using a viewpoint that you like, use the View | Add View option to save the viewpoint for later retrieval with a double-click.

  15. Click on the Pan button in the toolbar to reposition the image in the window. This tool is useful if you use the zoom in tool.
  16. Turn on/off logs or log items: Notice the only listing under Data in the data pane is a Group named Logs3D. Expand the groupings (by clicking on its + button) to see the individual boring names. You can turn entire logs on and off simply by checking/clearing their respective check-boxes. Try this for a few borings.
  17. In addition, if you expand an individual borehole in the data list, you’ll see its title and lithology intervals. These, also, can be turned on and off for each well. And, if you expand the Lithology for an individual borehole, you can turn on and off display of specific depth intervals.

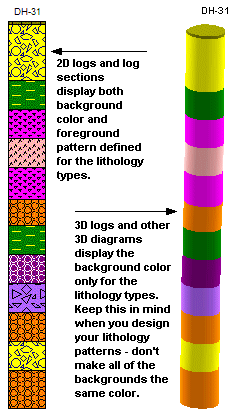

    ! You might be wondering why the 3D log tubes don't contain any lithology patterns. Note that RockWorks displays only the background color in 3D logs and other diagrams, because of the OpenGL 3D graphics engine. In the next lesson, you’ll create a 2D strip log which will display lithology pattern designs.


  18. Adjust the legend:
  19. Save the changes: Click on the File menu - the menu bar is above the viewing pane - and choose Save. Since you assigned a name already to this 3D scene, the program will simply save the changes you have made to the file.
  20. Close the RockPlot3D window by clicking in the upper-right Close button .

3D Logs
