2D Spherical Projection - Polylines

This program creates 2D global maps in a spherical projection. It reads one or more external files in which longitude and latitude coordinates of polyline vertices are defined, for display of these polylines on the global map. It also offers global reference items (coastlines, islands, rivers) from a program database.

Applications include large-scale fault lines, movement pathways, etc.

Menu Options
Step-by-Step Summary

Menu Options

• Input Columns: The prompts along the left side of the window tell RockWorks which columns in the input datasheet contain what data.
  Click on an existing name to select a different name from the drop-down list. See a sample data layout below.
  • File Name: Select the column in the main datasheet that contains the names of the external text files listing the longitude and latitude coordinates for polyline vertices to be plotted on the map.


• Polyline Style: Click on the line example to the right to choose a style and color for the polylines.
• Reference Lines: Expand this item to select whether longitude and latitude lines are to be plotted and, if so, their spacing and color.
• Geographic Features: Expand this item to select which built-in reference features are to be included in the map. Options include coastlines, major islands, major rivers and lakes, country borders, and/or U.S. state boundaries. To activate an item, insert a check in its check-box and expand it to select line style and color.
  • ! The features are low-resolution. The country boundaries are vintage 1990, and will not reflect more recent political boundary adjustments in eastern Europe, etc.
• Viewer Position:
  • Manually Defined: Click in this radio button to enter specific longitude and latitude coordinates for the midpoint of the diagram. (Be sure Western longitudes and Southern latitudes are entered as negatives. Be sure also that the coordinates are entered in a decimal degree format.)
  • Pre-Defined: Click in this button to select the viewer position from a list of cities. This is very useful when you don't know the longitude/latitude for an area of interest, but you do know the name of the closest city. Expand this heading to access the city list (click the down-arrow button). This listing is contained within an ASCII file called "locations.txt" within the program directory. Feel free to edit it if you wish, BUT! BE FOREWARNED ... You should always back this file up to a different location otherwise it will be overwritten the next time you install the latest version of this software.
• Opacity: Click in the Transparent button if you want to be able to see through the sphere and view objects on the opposite side. Choose Opaque for an opaque sphere.



Step-by-Step Summary

1. Access the RockWorks Utilities program tab.
2. Create a new datasheet and enter or import your listing of polyline data files into the datasheet.

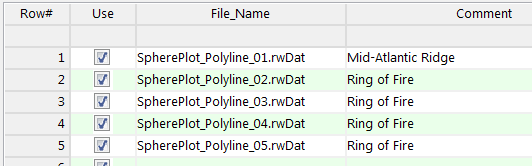

   Or, open one of the sample files and replace that data with your own. (In this example, the sample file = "\RockWorks17 Data\Samples\Sphereplot_Polylines_01.rwDat".) See the Global Map Polyline Data for details.

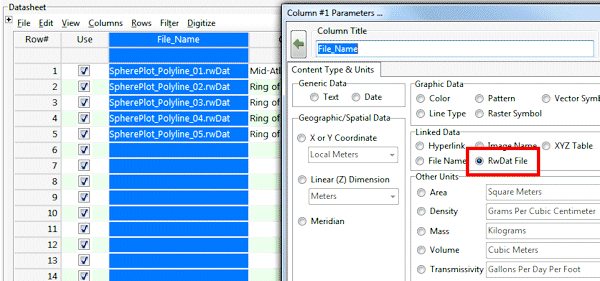

You can use the Columns | Column Properties menu option to establish the file-name column (such as "File_Name" shown here) as containing linked data, specifically another .rwDat file. Doing so allows you to double-click in one of the cells to display the contents of the linked file.

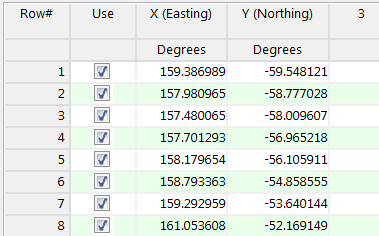

Each of the .RwDat files listed here needs to list the decimal longitude and latitude coordinates for the vertices of a single polygon:

3. Select the Map | SpherePlot | 2D Spherical Projection - Polylines menu option.
4. Establish the requested menu settings, described above.
5. Click the Process button to proceed.

The program will create a 2D spherical projection map, including the requested reference layers and your listed polylines. The completed map will be displayed in a RockPlot2D tab in the options window.

6. You can adjust any of the settings in the Options window (symbol options, annotations, etc.) and then click the Process button again to regenerate the map.
   ! Each time you click the Process button, the existing display will be replaced.

7. View / save / manipulate / export / print the map in the RockPlot2D window.
