Step 2: Selecting your Print Units

Once you have your printer set up, you need to establish the scaling units for the output.

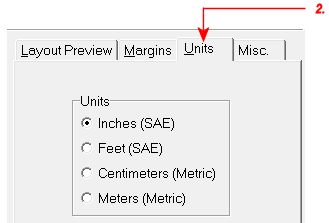

• Click on the Units tab.
• Choose the print units for your image.
  • Choose Inches if you want to print your image in map/diagram units per inch of paper.
  • Choose Feet if you want to print your image in map/diagram units per feet of paper.
  • Choose Centimeters if you want to print your image in map/diagram units per centimeter of paper.
  • Choose Meters if you want to print your image in map/diagram units per meter of paper.

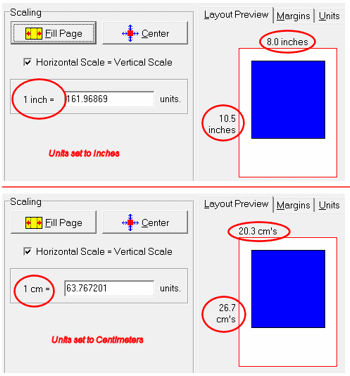

• Click on the Layout Preview tab to return to that view, and you'll see the paper dimensions updated to reflect your print units.
