The isosurface is a great means to visualize the spatial distribution of particular G values in a solid model, since it encloses a specified G-value (and above) in a blobby-sort of "skin".
RockPlot3D also offers a slicing tool that allows you to visualize what is in the solid model at any particular horizontal or vertical plane. Multiple slices may be added.
! Slices are insertable along node levels only, so the number of slices you can insert, and their specific placement in the model, are dependent on the location of the nodes within the solid model.
- Slices: Locate the Slices section at the bottom of the Isosurface Options window.
- Horizontal:
- To insert a horizontal slice, click in the Horizontal radio button. The slider bar will represent the base of the model to the left and the top of the model to the right. The elevation represented for any slider bar position is displayed in the window.
- Drag the slider bar until the desired elevation is displayed.
- Choose what is to happen with the isosurface display as you insert the slice:
- Hide And (Add slice): Choose this option from the drop-down list if the isosurface is to be hidden when the slice is inserted. This is the default settings, and it allows you to actually see the slice inside the model.
- Solid And (Add slice): Choose this if the isosurface is to remain displayed when the slice is inserted. Note that you will not be able to see the slice because it will be inside the model. You can later set the Draw Style to Hidden to render the slice(s) visible.
- Wire Frame And (Add slice): Choose this if the isosurface is to be displayed using a wire frame when the slice is inserted.
- Click the Add Slice button to insert the slice. You should see the slice in the View pane, and the slice will be represented as a new item in the Data pane.

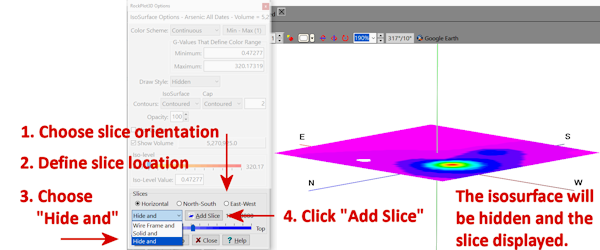

Here are some examples of the process of adding a horizontal slice, with hidden, wire frame, and solid isosurface displays.
- North-South:
- To insert a north-to-south vertical slice, click in the North-South radio button. The slider bar's left edge will represent the western boundary of the model, and the right edge will represent the eastern boundary of the model. The X coordinate represented for any slider bar position is displayed in the window.
- Drag the slider bar until the desired X coordinate is displayed.
- Click the Hide And or Wire Frame And or Solid And option, described above.
- Click the Add Slice button to insert the slice. You should see the slice in the View pane, and the slice will be represented as a new item in the Data pane.
- East-West:
- To insert an east-to-west vertical slice, click in the East-West radio button. The slider bar's left edge will represent the southern boundary of the model, and the right edge will represent the northern boundary of the model. The Y coordinate represented for any slider bar position is displayed in the window.
- Drag the slider bar until the desired Y coordinate is displayed.
- Click the Hide And or Wire Frame And or Solid And option, described above.
- Click the Add Slice button to insert the slice. You should see the slice in the View pane, and the slice will be represented as a new item in the Data pane.
- Repeat this process to add multiple slices. You can insert multiple slices in a model, but they must be inserted one at a time. If you cannot see the slices, try displaying the isosurface to a Draw Style of Hidden.
In the example below, one N-S vertical slice, one E-W vertical slice, and one horizontal slice have been added to a solid model representing Benzene concentrations. The isosurface itself is set to a Draw Style of "Hidden" so that the slices are visible.
- Slice Options for information about adjusting their position and appearance. (You can interactively drag the slices to fine-tune their position, filter out G values, change the color scheme, etc.)
