AGS Import - Interval Data

Follow these instructions to define the LogPlot datasheets for AGS data blocks which have two depths per measurement (top and base) and numeric data values.

See Interval Text for alphanumeric data recorded over a depth interval.

Step 6: Set up the Interval Data Information.

1. Click on the AGS data tab at the top of the import window to select the data you wish to map to a LogPlot Interval Data (bargraph) datasheet.

2. Choose the LogPlot Data Type for "fieldname": Click the down-arrow here ("v") to select the "Interval Data" datasheet.



3. Available LP Fields: This pane, along the right side of the window, will display the LogPlot Interval Data fields which you can associate with the AGS data fields.
   • Top: Use your mouse to drag this field, representing the depth at the top of the interval, to the appropriate AGS depth field.
     Click the View Table Data button if you would like to look at the AGS source data. You can leave that window open while you map the LogPlot fields.
   •

   • Base: Use your mouse to drag this field, represending the depth at the base of the measurement interval, to the appropriate AGS depth field.
   •

   • Column Title: If the AGS data contains a Determinand column, this indicates that each component is listed on a separate row.
     Drag the LogPlot Column Title field here. This will tell LogPlot how many columns will be created in the Interval Data datasheet, and the titles to assign to the columns.
   •

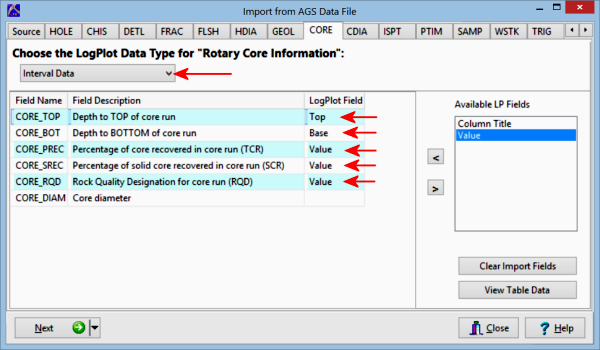

   • Value: Drag this item to the desired AGS field(s). If each component is listed on a separate row, you will map one Value column. If the components are listed in columns, you can assign multiple Value columns, as shown in the example above.
   •

4. Click the Next button to proceed to the next AGS data block.
   Or, click on a tab at the top of the screen to select the next AGS data block to map.
   Or, click on the small drop-down arrow by the Next button to jump directly to the next import screen of interest.
