AGS Import - Point Text

Follow these instructions to define the LogPlot datasheets for AGS data blocks which have one depth per measurement and alphanumeric data values.

See Point Data for numeric data recorded at a single depth.

Step 5: Set up the Point-Text Information.

1. Click on the AGS data tab at the top of the import window to select the data you wish to map to a LogPlot Point Text datasheet.

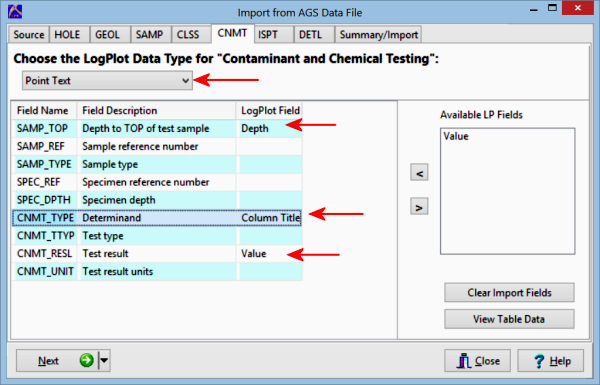

2. Choose the LogPlot Data Type for "fieldname": Click the down-arrow here ("v") to select the "Point Text" datasheet.



3. Available LP Fields: This pane, along the right side of the window, will display the LogPlot Point Text fields which you can associate with the AGS data fields.
   • Depth: Use your mouse to drag this field, representing the depth at the sample or top of sample, to the appropriate AGS depth field.

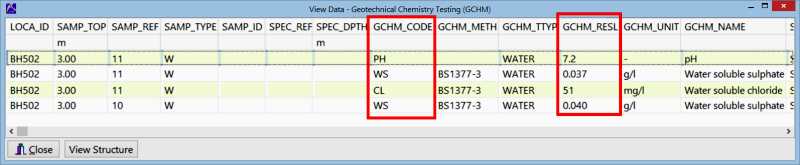

     Click the View Table Data button if you would like to look at the AGS source data. You can leave that window open while you map the LogPlot fields.
   •

   • Column Title: If the AGS data contains a Determinand column (as shown above), this indicates that each component is listed on a separate row.

   •

     Drag the LogPlot Column Title field here. This will tell LogPlot how many columns will be created in the Point Text datasheet, and the titles to assign to the columns.

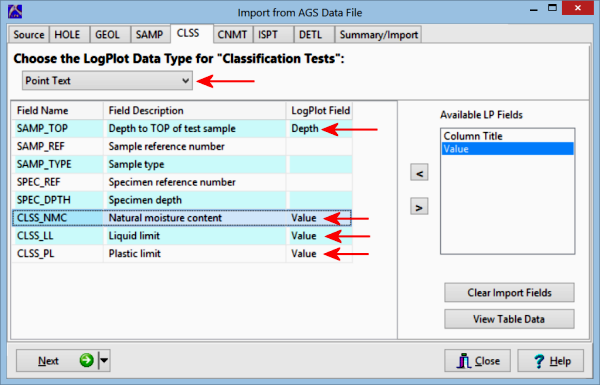

   • Value: Drag this item to the desired AGS field(s). If each component is listed on a separate row, you will map one Value column. If the components are listed in columns, you can assign multiple Value columns.



4. Click the Next button to proceed to the next AGS data block.
   Or, click on a tab at the top of the screen to select the next AGS data block to map.
   Or, click on the small drop-down arrow by the Next button to jump directly to the next import screen of interest.
