Sample Density Gridding

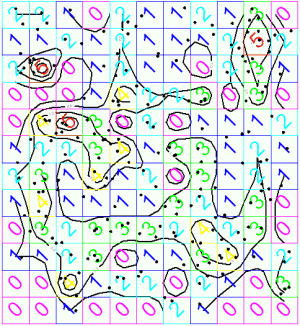

This gridding method assigns grid node values by simply counting the number of occurrences of control points within the corresponding grid cells.  It does not take into account any actual data listed for the control points, instead it just counts the number of points.  This technique is useful when contouring relative frequencies. Examples include well density and population distributions.

Notes

• The actual control point z-values are ignored by this program.
• This algorithm is NOT intended for modeling structural surfaces or thickness values.
• Do not use the "Declustering" option in conjunction with this algorithm. Duplicate points must be considered for the applications that we had in mind when designing this program (i.e. multiple occurrences at the same location).


Menu Options

• There are none.
