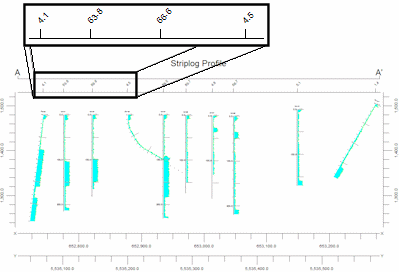

Use the Show Collar Distances option in the Profile and Projected Section options to include labels at the top of the diagram which indicate the distance from each borehole collar to the profile line. These only apply to profiles and projected sections in which striplogs are displayed.
Show Collar Distances
- Vertical Tick Mark Height: This setting will define the height of the small tick-marks which extend vertically up to the distance labels. Size is expressed as a percent of the project dimensions. (Default = 1.0)
- Font Size: Use this setting to define the size of the labels, also as a percent of the project size. (Default = 1.0)
- Decimal Places: Click here to define the number of decimal places to be displayed in the distance labels.

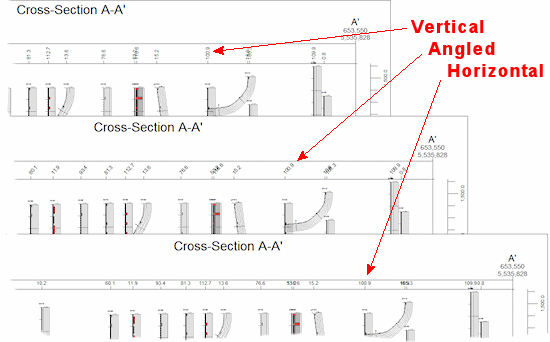

- Label Orientation: Use the radio buttons to define the angle of the distance labels.
