Limit Output: Check this box if you want to omit specific lithology types from the output model. This is a post-modeling value filter, whereby nodes outside the selected G value range are changed to null after interpolation. Click on this tab to enter the limits.
- Minimum G-Value: Enter here the minimum "G" value to be included in the output model.
- Maximum G-Value: Enter here the maximum "G" value to be included in the output model.

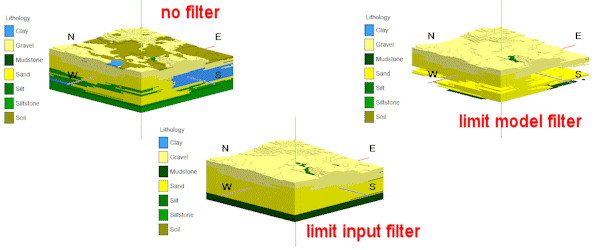

Compare the following diagrams. The first is a lithology model with neither of the above limits enforced. The middle image is an example of the model which results from the Limit Input filter, with Clay, Siltstone, and Soil excluded from the modeling process. The right-hand image is the model which results from the Limit Model filter, with Clay, Siltstone, and Soil removed from the model after it was interpolated (note the holes).
