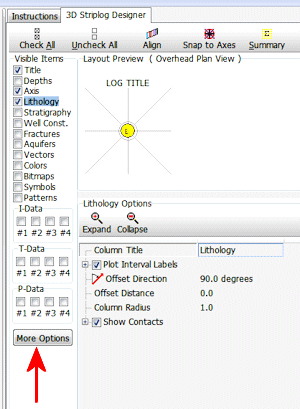

When you click on the More Options button in the RockWorks 3D Striplog Designer window, you'll see the following settings.
Menu Options
- Column Options
- Plot Column Axes: Check this box to include a line representing the column axis. Expand this heading to select the column axis line style and color. Note that this may be hidden within the column's cylinders, discs, etc.
- Plot Column Borders: Check this item to include polyline borders around the image, P-Data, and I-Data columns.
- Plot Horizontal Dividers: Insert a check here to display horizontal lines down the log, at automatically-computed increments.
- Plot Vertical Dividers: Insert a check here to include vertical lines in all active I-Data, T-Data, and P-data columns.
- Subdivisions: Click on this option to enter the number of divisions to display.
- Column Titles: Expand this heading to establish the font size, vertical offset, and leader lines for any column titles you've chosen to plot. The column title text is entered under the Options settings for each column.
- Font: Click here to select the font and size for the column title text.
- Offset: Enter here the offset of the title(s) above the log. Default = 0.1. If you know that you'll be displaying your logs at a significant vertical exaggeration, you might set this to 0.
- Leader Lines: Check this box to include a line between the column title and the top of the log.
- Entity Labels: Expand this heading to set font size, offset, and leader lines for any caption labels that you have activated, such as lithology keywords, water level dates, well construction captions, etc.
- Font: Click here to select the font and size for the label text.
- Offset: Enter here the offset of the labels to the side of the log column. Default = 0.5.
- Leader Lines: Check this box to include a line between the labels and the log column.
